Infrared Panel Heater with LED lighting - Lux Plus
Key Features
- 2-in-1 infrared heating with LED lighting
- Wall or ceiling mount
- Exceptional Radiation Efficiency (IEC60675-3 Standards)
- Dimmable, heat-resistant LED
- 3000K–6000K tunable color
- Smart thermostat for heat & light
- Extra switch for light-only control
wireless control
Thermostat ready
High quality lighting
IEC60773-2 certified
What size panel do I need for my area?
| Model | Power | Size |
|---|---|---|
|
Lux200-Plus |
200W |
42×42cm |
|
Lux400-Plus |
400W |
62×62cm |
|
Lux800-Plus |
800W |
61×121cm |
Instant Warmth
Feel the comfort the moment you turn it on.
Touch of Luxury
Comfort that feels as refined as it looks.
Built-in Reliability
Every unit tested to perform — and endure.
Safe for All
Child and pet friendly design for total peace of mind.
Made to Last
Premium materials, enduring comfort.
Effortless Setup
Install with ease — ready to go in minutes.
Light Up Your Space with Warmth and Elegance – The Sundirect Lux-Plus Series
The Sundirect Lux-Plus Series is a premium infrared heating panel with an integrated LED light frame. Designed as a heat-and-light-in-one solution, Lux-Plus is one of the most innovative and stylish additions to our product family, making it a highly popular choice in the modern heating market.
Innovative Frameless Design with High Efficiency
The Lux-Plus features a frameless metal surface, representing the latest heating technology from Sundirect. Built according to IEC60675-3 standards, it delivers exceptional radiation efficiency, ensuring maximum comfort with minimal energy consumption.
Adding to its innovation, the Lux-Plus integrates a high-performance LED lighting frame, surrounding the infrared panel seamlessly while providing a soft, pleasant illumination that enhances any room’s atmosphere.
Specification
| Model: | Lux-Plus |
| Surface: | White powder-coated steel |
| Back | White powder-coated steel |
| Colour: | white, RAL 9003 |
| Heating technology: | Silicone heating wire with high-temperature resistance |
| Infrared radiation | 6 – 12µm |
| Warm up time | 5.58 minutes |
| Built-in thermostat receiver | Yes |
| Transmission frequency | 2.4GHz, RF connection |
| Power supply: | 220-240V, 50-60Hz |
| IP rating: | IP 44 |
| Protection class: | I |
| Plug: | Schuko plug with 1.8 cable |
| Certifications: | CE/ GS / ROHS/ REACH/ ERP |
| Warranty | 3 years |
Control / Accessories
Installation and Maintenance
The Sundirect Lux-Plus Infrared Heater is a stylish, frameless panel that combines efficient infrared heating with an integrated LED light frame. Designed as a heat-and-light-in-one solution, it delivers high radiation efficiency and pleasant ambient lighting, making it a perfect addition to modern interiors. With wall or ceiling mounting options and an IP44 rating, it is also suitable for bathrooms.
Engineered for convenience, the Lux-Plus comes with a built-in Lux thermostat receiver, allowing wireless control via the Smart Lux or Smart Lux Pro controllers. You can also add up to two extra light switches for independent light operation, while one master controller can manage up to 10 heaters simultaneously. The LED lighting system is dimmable, adjustable between 3000K–6000K, and built with aluminum-based strips to ensure durability under high temperatures.
Safety and reliability are central to the Lux-Plus design. Cleaning is simple with a soft, dry cloth, and only authorized Sundirect dealers should handle repairs. The panel is CE certified, Eco-design compliant, and equipped with advanced technology for efficient, long-lasting performance. At the end of its life, the heater should be disposed of responsibly in accordance with local electronic waste regulations.
Download

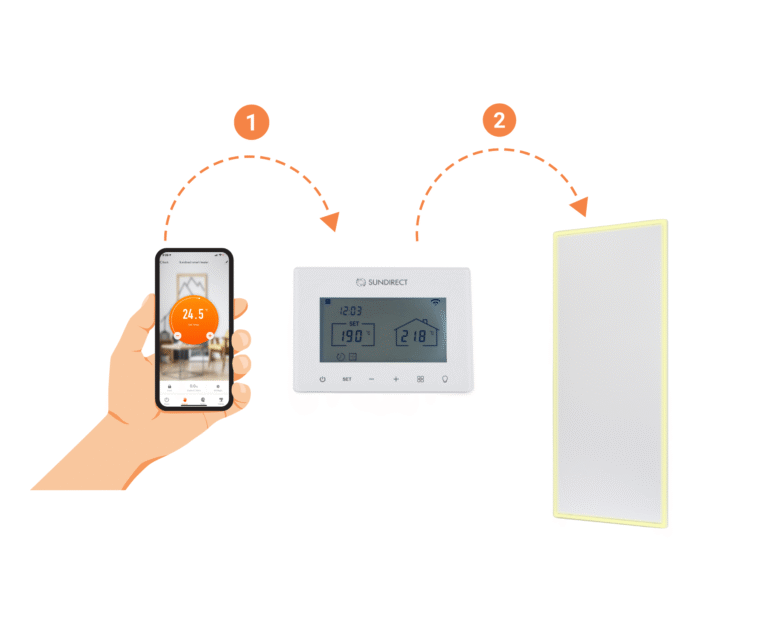

Wireless Control for Your Lux-Plus Lighting Integrated Panel
The Smart Lux and Smart Lux Pro thermostats are designed exclusively for the Lux-Plus series, giving you complete control over both heating and integrated LED lighting. With wireless connectivity, you can easily create heating schedules, dim or brighten the light, and adjust the color temperature from 3000K to 6000K — all from a single device. Group control allows you to manage up to 10 Lux-Plus panels simultaneously, ensuring seamless comfort and ambiance across your space.

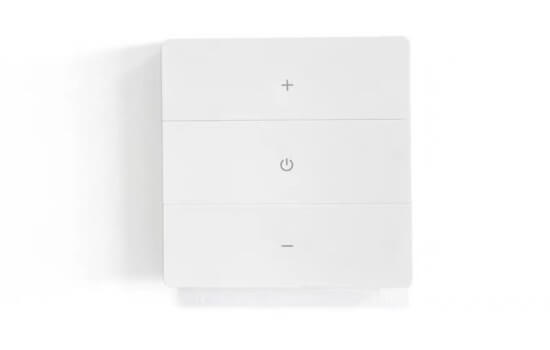

For added convenience, we also offer the Smart Switch, a simple and elegant light-only controller that provides quick, straightforward control over the lighting frame.
Where Can I Use the Lux Plus Infrared Panel Heater with LED Lighting?
The Sundirect Lux Plus combines efficient infrared heating with elegant LED lighting, offering a premium dual-function solution for a wide variety of environments. Whether you’re upgrading your home, enhancing your workspace, or adding comfort to commercial interiors, Lux Plus delivers both warmth and ambiance with modern style.
Domestic Applications
Living Rooms & Bedrooms: Replace bulky radiators with a frameless, space-saving panel that provides consistent heat in Living Rooms & Bedrooms while adding a sophisticated lighting feature.

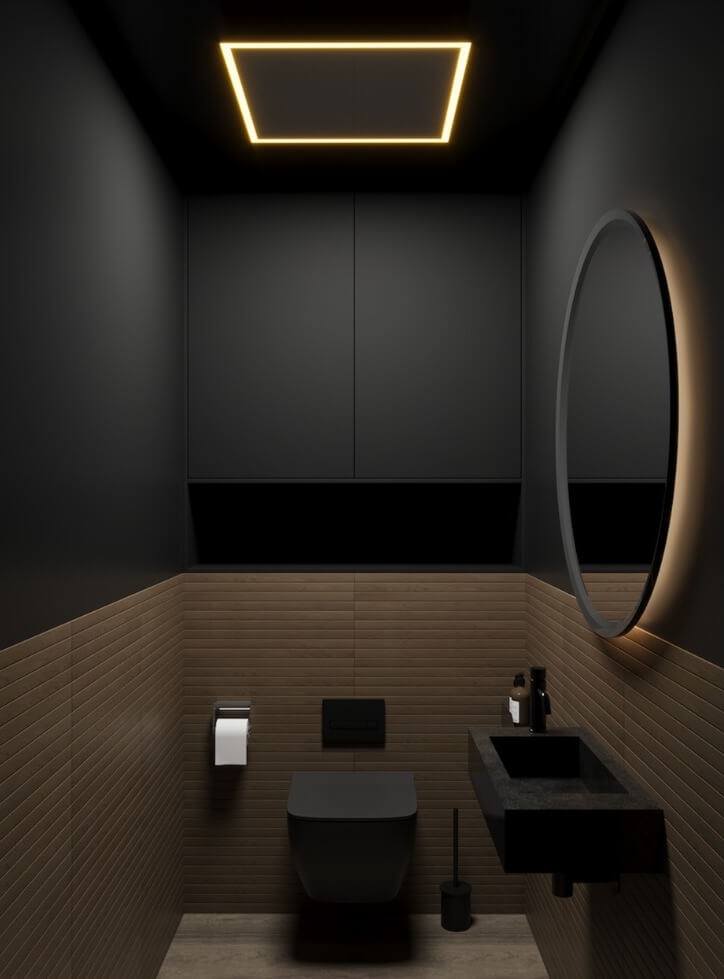

Bathrooms & Kitchens: Enjoy clean, damp-resistant warmth with IP44-rated panels, perfectly safe for humid spaces and enhanced with adjustable LED light.
Shared Living Spaces: An energy-efficient, low-maintenance heating and lighting solution for council housing, housing associations, and student accommodations.
Commercial Applications
Offices & Workspaces: Create a warm, productive environment with silent heating and customizable LED lighting—ideal for modern workspaces.
Hospitality Settings: Elevate guest comfort in hotels, restaurants, and cafés with discreet, stylish panels that deliver both cozy warmth and ambient light.
Healthcare Facilities: Perfect for sensitive spaces—infrared heating reduces airborne particles while the LED frame provides hygienic, glare-free lighting.
Looking for a heating and lighting solution tailored to your needs? Explore our Lux Plus Infrared Panel Heater range and discover the perfect fit for every room, building, or business.
How Do Infrared Heaters Work?
Infrared heaters work differently from traditional convection heaters. Instead of warming the air, they emit invisible waves of heat that are absorbed directly by objects, walls, and people, just like natural sunlight, but without the harmful UV rays.
This means the warmth is felt faster and lasts longer, even when doors or windows are open. Because they don’t rely on circulating hot air, there’s no dust movement, no drafts, and no wasted energy heating unused space above head height.
Far infrared is especially gentle and effective. It penetrates just under the skin to provide a deep, lasting warmth that feels natural, comfortable, and efficient. It’s completely silent, safe, and perfect for both homes and commercial settings.
In short, infrared heating offers a smarter, healthier, and more economical way to stay warm — all while reducing your carbon footprint.
Why Choose Infrared Heating Panels?
Pure Air Comfort
No dust or dry air — just clean, natural heat for healthier living.
Targeted Heating
Warm only the spaces you need the most
Maintenance-Free
No moving parts, no filters simply install, switch on, and relax.
Whisper-Silent
No more hum, no buzz, just quiet comfort.
Smart Energy Use
Delivers powerful warmth using less energy — efficient comfort
Quick Heat Response
Instant warmth without preheating the whole space.
Instant Coziness
Enjoy soft, radiant warmth the second it starts.
Moisture Control
Keeps walls dry and helps prevent condensation.
Need Expert Advice?
Not sure what size heater you need for your room? Use our handy Wattage Calculator to quickly work out the recommended wattage for all your rooms or areas.
FAQ's
Yes, the Lux Plus is safe for kids when installed correctly. Unlike traditional heaters, it doesn’t circulate hot air or exposed flames. The panel maintains a controlled surface temperature and can be ceiling-mounted to stay out of reach, ensuring safe and comfortable warmth.
Absolutely. The Lux Plus infrared panel provides gentle, even heat that pets love. It doesn’t dry out the air or create hot drafts, making it a safe and cozy heating option for households with cats, dogs, or other pets.
Yes. The Lux-Plus Series is tested according to IEC60675-3, guaranteeing exceptional radiation efficiency and energy transparency.
Yes, thanks to its IP44 rating, the Lux Plus is safe for humid environments. It provides reliable warmth in bathrooms and kitchens while the LED lighting ensures a bright, modern atmosphere.
The Lux Plus is equipped with a built-in thermostat receiver and works seamlessly with the Smart Lux or Smart Lux Pro thermostats. This allows you to control heat and lighting wirelessly, adjust brightness, and set color temperature (3000K–6000K). Smart Lux Pro even supports WiFi app control for maximum convenience.
